A water softener brine tank is the smaller container sitting next to your main softener unit, usually holding a stack of white salt pellets. It’s easy to overlook until something goes wrong — the water suddenly feels hard again, or you open the lid and find a flooded tank instead of dry salt.At that point, most homeowners face the same question: is this an easy fix or the beginning of an expensive repair?
Simply stated: A water softener brine tank stores salt and water together to form a concentrated saltwater solution known as brine. As part of its regeneration process, your softener will use this brine to recharge its resin beads – these beads actually remove hardness minerals such as calcium and magnesium from your water source. Without brine storage there would be no regeneration; without it eventually your hard water would return regardless of how well-built the rest of the system may be.
This guide details how a water softener brine tank works, the most frequent issues it faces over time, how to clean and maintain water softener brine tank and when repair might not suffice; and finally when to consider water softener brine tankreplacing either just the tank itself or all components altogether.
How a Brine Tank Fits Into the Softening Process
Most residential water softeners utilize a two-tank system: a resin tank that performs actual softening (ion exchange), and a brine tank which supports this process.
Here’s the basic cycle:
- Salt sits atop a shallow pool of water at the base of a brine tank and slowly dissolves, producing brine.
- On a schedule — either a timer or based on water usage — the control valve starts a regeneration cycle, usually overnight.
- Brine is removed from its tank and fed through a resin tank, where it then enters an end point for use as fuel for fireproofing purposes.
- Filling up with freshwater refreshes the brine tank in time for its next cycle.
Make a mental distinction between the resin tank (where softening occurs) and brine tank (which renews it once used up) for easy diagnosis of issues pertaining to both. When people mention that “your resin tank looks fine; the issue lies on its side”, this distinction becomes critical in diagnosing issues accurately.
What Normal Looks Like
A functioning water softener brine tank have only a few inches of standing water at the bottom — not a tank half-full of liquid. Salt levels should stay somewhere between one-third and two-thirds full; letting it run completely empty, or leaving it mostly empty for long stretches, increases the odds of the two most common brine tank problems: salt bridging and salt mushing.
Why a Brine Tank Floods or Won’t Drain
A flooded water softener brine tank — water rising well above the salt platform — is one of the more alarming things a homeowner can find, but it’s rarely a sign the whole system needs replacing.
The usual culprits are:
- A stuck brine valve or float assembly that isn’t shutting off correctly
- A clogged injector or venturi nozzle preventing proper draw-down
- A kinked or blocked drain line
On the flip side, a tank with no water at all usually points to a clogged fill line or a float that’s stuck in the wrong position, preventing the tank from refilling during regeneration.
Either issue is typically traced to a specific part — not tank damage — and can often be cleaned or replaced without buying a new tank.
3 Best Water Softener Brine Tanks
1. Clack BT1833R-C474 Brine Tank
The Clack BT1833R-C474 is an 18 × 33-inch water softener brine tank designed for residential and light-commercial water softening systems. This tank comes equipped with a 474 safety float valve to prevent it from overfilling and its durable polyethylene construction makes it suitable for long-term salt storage with regular regeneration cycles.
The 18-inch diameter provides an efficient footprint while offering ample salt capacity to meet many home installation needs. It is also available as an assembly with a brine grid, which can make installation easier depending on your softener setup.

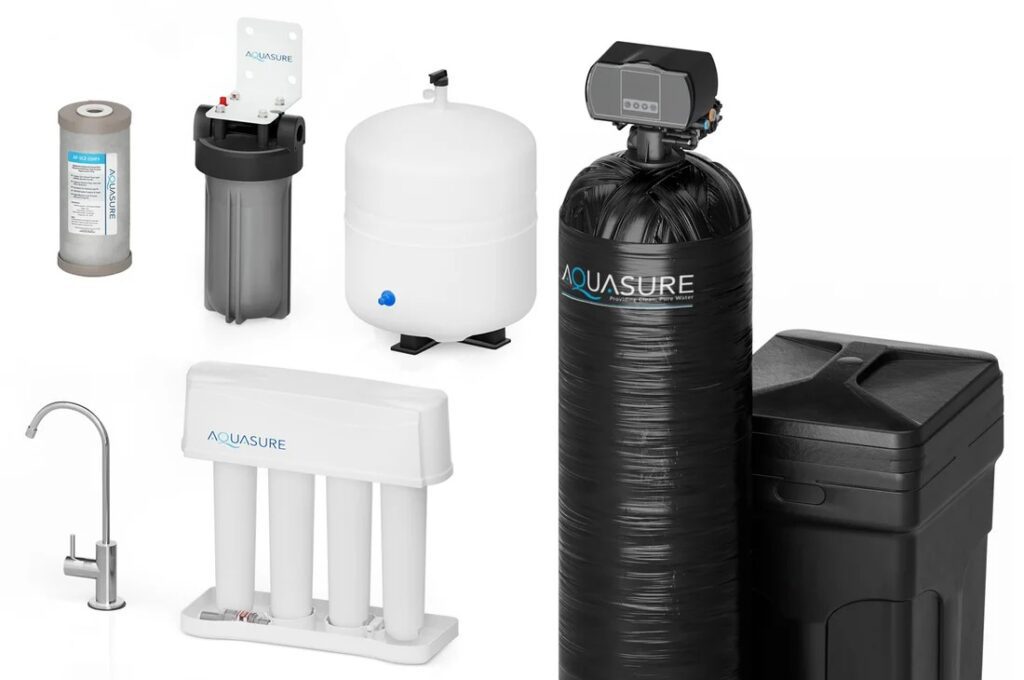

2. Aquasure Harmony Brine Tank
The Aquasure Harmony Series Brine Tank is designed as part of Aquasure’s residential water-softening systems and can come with a digital control head, brine line, drain line, flow regulator, and grid plate.
Its components are designed to work together, making it a convenient option when replacing or upgrading several softener components at once.
Aquasure’s brine tanks connect directly with control valves via brine lines in order to supply salt solution during regeneration processes, making maintenance of existing Harmony systems much simpler. Aquasure offers replacement brine tanks separately so it is simple for existing Harmony owners to stay up-and-running.

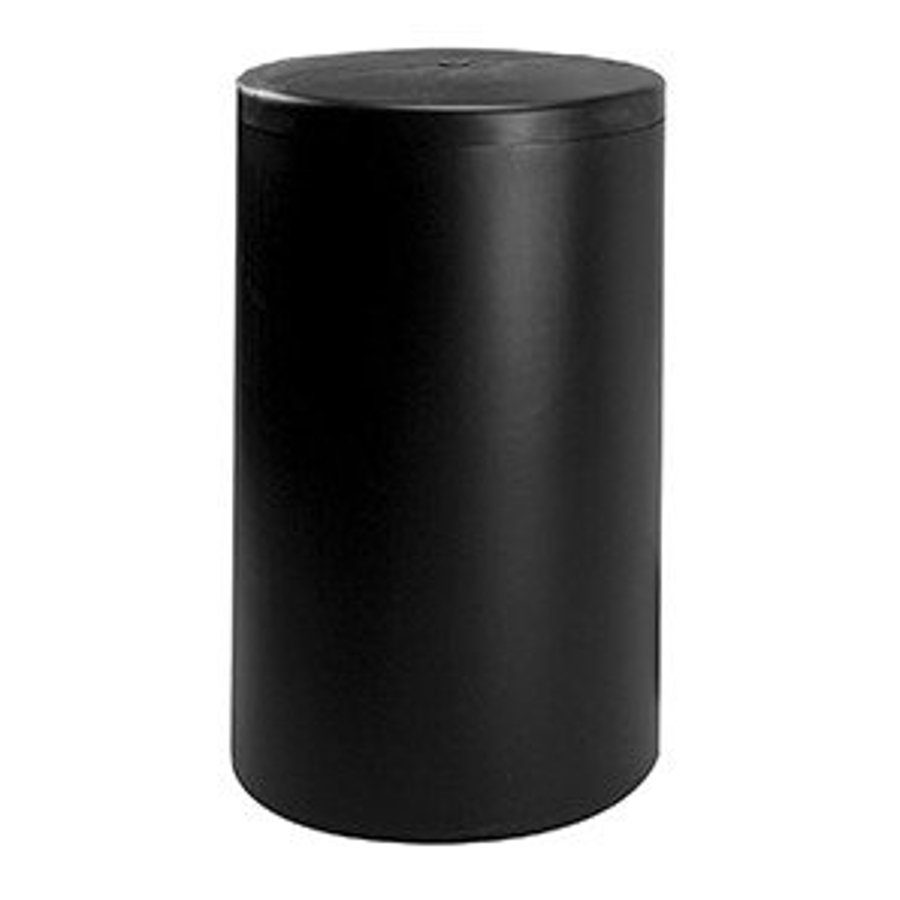

3. Clack J7521-06 18 × 40 Brine Tank
The Clack J7521-06 is an 18 × 40-inch brine tank assembly with a 474 safety valve, providing more vertical capacity than the 18 × 33-inch version. Clack’s specifications list the 18 × 40 size at approximately 45 gallons of liquid capacity and up to 447 lb of salt capacity, depending on how capacity is measured
Due to its larger size, this filter makes a suitable option for higher capacity residential softeners and light commercial applications.
The taller design can provide additional salt storage while maintaining the same 18-inch diameter footprint. It is particularly useful when you want a larger brine tank without moving to a much wider commercial-sized tank.
Choosing the Right Salt
Different softener salts behave in different ways and the one you select directly impacts how often bridging and mushing occur.
| Salt Type | Purity | Best For | Notes |
| Solar salt | Moderate | Most households | Affordable, dissolves reasonably well |
| Evaporated salt | High | Tanks prone to bridging | Purest option, least residue |
| Rock salt | Lower | Rarely recommended | More insoluble buildup, more cleaning |
| Potassium chloride | Sodium-free | Sodium-restricted households | Costs more, may need setting adjustments |
Table salt is never a good substitute — it contains anti-caking additives that clog softener components fast.
Repair or Replace? A Practical Framework
Not every water softener brine tank issue means buying a new unit. In most cases, it comes down to whether the problem is with the tank shell itself or with a specific internal part.
| Situation | Recommended Path |
| Cracked or warped tank shell | Replace the tank |
| Stuck valve or float only | Repair — replace the part |
| Recurring flooding despite maintenance, older system | Consider replacing the whole softener |
| Cosmetic wear, otherwise working fine | No action needed |
As a rule of thumb, if repair costs start approaching half the price of a full replacement, or the water softener brine tank unit is already past the 10–15 year mark, replacement usually makes more financial sense than repeated part swaps.
Alternatives Worth Knowing About
A traditional water softener brine tank is part of any salt-based ion-exchange softener, but water softener brine tank not the only way to deal with hard water:
- Salt-free conditioners alter mineral structure instead of removing it — no brine tank, lower maintenance, but they don’t technically “soften” water the way ion exchange does.
- Reverse osmosis systems improve drinking water at a single tap but don’t address whole-house hardness.
- Potassium chloride softeners use the same brine tank mechanism as salt-based systems, just with a sodium-free substitute, useful for sodium-restricted households.
None of these are strict upgrades — they’re trade-offs, and the right choice depends on whether whole-house softening or sodium content matters more to your situation.
Conclusion: Water Softener Brine Tank
Most water softener brine tank problems trace back to a handful of causes: low or excess moisture, the wrong salt, or a worn valve and float assembly — not a failing system that needs full replacement. Early identification of bridge, flood or sludge accumulation problems often enables easier fixes than major replacement costs.
If you are currently experiencing symptoms that seem strange or concerning, begin with the basics: Check water level and for signs of bridging/sludge build-up before verifying which salt type you use. Clean-out or single part replacement are usually sufficient solutions in most instances; but in cases such as cracked tanks and systems ageing past 10-15 years where repairs become costly it might make more sense to consider full system water softener brine tank replacement as an option.
